Here is a soffit box with an extended return (4"):

Note the L-shaped eave soffit.
I really have no idea if this is the correct way to build a soffit box but here is one possibility:

A couple things jump out at me:

1.) Note the double miter cut of the gable fascia.

2.) Note the addition of the two pieces of fascia to create the soffit box.

3.) I've shown this soffit box with a 15" return (the minimum return) however one could extend the return further and the eave soffit would then morph into an L shaped configuration.  So if this type of soffit configuration is specified I should also provide the user with the ability to set the return length.

With gable roofs and their soffit and fascias it looks like I've open yet another can of worms.
Since the hip rafter roof now has soffit and fascia I thought it would be fitting to add the same treatment to the gable roof, however the gable roof is surprisingly more complicated when it comes to soffit and fascia.  Take the example shown below:

A number of questions arise:

1.)  The sheathing terminates at the sub-fascia (at the eave, per previous discussion) however should it extend out to the gable fascia? or just terminate at the gable sub-fascia as shown?

2.)  The cladding may need a different treatment even for hip roofs and for gable roofs.  Rather than relying on the cladding extension parameter to bring it out over the fascia maybe bring the cladding out to the fascia by default and then the extension parameter brings it beyond the fascia if desired?  The cladding extension parameter should also really be per the horizontal rather than per the roof plane due to complications with asymmetric roofs.

3.)  A number of possible configurations can exist at the corner where the eave and gable soffit meet.  Ideas?  I don't even know what these variants are called, but I've seen them all.  Some architects really don't like the soffit boxes but even these are popular in many regions.

4.)  Should the gable fascia terminate as shown or extend beyond the eave fascia (projection).  The projected gable fascia seems to be very popular in western Washington.

5.)  The gutters will naturally be offset if fascia is specified but should I extend the gutters to terminate flush to the gable fascia or leave them so they terminate flush to the gable sub-fascia?

These roofs are complicated business.  Lots of little details.  Even though I'm not an architect or designer I've still got to deal with them all since I'm creating a tool that involves all of these subtle design decisions.  Structural elements tend to be a bit simpler in my opinion.
Medeek Truss Plugin / Re: Development and Updates for the Medeek Truss Plugin
« Last post by Medeek on May 25, 2019, 03:30:46 pm »
Version 2.4.1 - 05.25.2019
- Parameter hightlight (input) color added to General tab of global settings.
- Parameter change highlighting enabled for the gable and hip rafter roof edit menus.
- Added the indexing parameter for roofs and floors to the General tab of the global settings.

A few minor items addressed per recent customer requests.
Medeek Truss Plugin / Re: Development and Updates for the Medeek Truss Plugin
« Last post by Medeek on May 24, 2019, 07:44:18 am »
The complex roof algorithm seems to be fairly robust thus far, I haven't been able to break it just yet. However as I am contemplating how to make it so that each roof plane is adjustable (variable pitch) it is quickly becoming apparent that such a feature would become very complicated.

The issue really is a situation where you have a particular roof plane that you want to adjust.  You then change its pitch (assuming all other pitches are left the same) and the roof gets recalculated.  In certain situations that roof plane may then merge with another roof plane.  If that happens then one of the two roof planes is absorbed by the other (both pitches must be equal of course).

The difficulty seems to arise in the tracking of each roof plane and the custom pitch assigned to it.  The number of roof planes can be variable.  The ability to edit each roof plane will need to be an "on the fly" sort of tool which allows the user to adjust only one roof plane at a time and then recalc the entire roof to re-determine the shape of the roof and hence how many and where its new roof planes actually are.

The easiest way to store this information, in my option. is to maintain the roof solid group (on a separate hidden layer).  From this solid the roof planes can quickly be ascertained as well as the outline or footprint of the roof.  I'm still thinking this one through as you can probably tell.

Initially the roof will be drawn with one overhang and one pitch.  Where the edit menu can take it from there is where it potentially becomes quite complicated.

Consider a complex roof like the one below:

I can see that the framing can be accomplished with some basic rules/logic however non-orthogonal roof outlines will probably require some additional logic.

The tool that allows the user to define the footprint or outline of the roof should allow for the selection of a face or allow the user to pick points that then define the closed path of the roof outline.  The code required to do this is already within my foundation plugin and will only need some minor modifications to make if work for this module as well.
Medeek Truss Plugin / Re: Development and Updates for the Medeek Truss Plugin
« Last post by Medeek on May 23, 2019, 02:56:00 am »
I will also need a tool or function that allows the user to toggle specific roof planes from hip to gable or back again.

Also note that this algorithm seems to work just fine even with asymmetric roofs.

Once I have the plugin able to frame out any complex roof (rafters and trusses), its going to be a game changer.
Medeek Truss Plugin / Re: Development and Updates for the Medeek Truss Plugin
« Last post by Medeek on May 23, 2019, 02:23:46 am »
I've decided to put the drip edge on hold for just a bit and focus on the secondary roof module.

There is really two ways to handle this.  You can either start with a primary roof and then add secondary roofs that tie into it.  Or you can allow the user to pick the building outline (any polygon) and utilize a straight skeleton algorithm to compute the roof planes.  There are some pros and cons (limitations) to each method.

Obviously with the straight skeleton method one would assume that the fascia lines up all the way around the roof so it doesn't lend itself to secondary roofs like dormers that may be positioned up on the roof.

However, the straight skeleton allows for some really complicated scenarios that you just cannot achieve with a secondary roof methodology.

A few months ago I was trying to come up with a robust straight skeleton algorithm and somehow it defeated me.  This morning I took a slightly different approach and I now think I've finally solved it:

Step 1:

Step 2:

Step 3:

Step 4:

Once I have the roof "solid" I can then easily pull out the edges that represent the hips, ridges, valleys and flying hips.  From there it is just a matter of some tedious logic to detect whether to frame a common, hip jack, valley jack or cripple jack (hip/valley jack).

Of course the devil is in the details but I now think I have a path forward for complex roofs, this is major breakthrough.
Medeek Truss Plugin / Re: Development and Updates for the Medeek Truss Plugin
« Last post by Medeek on May 22, 2019, 12:37:40 pm »
The two most common drip edges Iíve seen applied to residential roofs are the right two profiles shown in this image:

It would be more light weight to represent these metals as simple edges and faces but then they would Z fight with whatever they are resting on so I guess it is probably better to assign a thickness and model them as a solid instead.

So the two options to start will be a L or a D drip edge (not sure why they call it a D). The dimensions will all be customizable like the roof gutters.
Medeek Truss Plugin / Re: Development and Updates for the Medeek Truss Plugin
« Last post by Medeek on May 22, 2019, 09:32:39 am »
After some further testing of the roof cladding extension parameter I think it makes more sense to make the extension per the horizontal and not per the roof plane.  The problems really only seem to arise when you have an asymmetric roof, in this case the higher pitched roof will project less than the lower pitched roof if the extension is parallel to the roof plane.

Medeek Wall Plugin / Re: Development and Updates for the Medeek Wall Plugin
« Last post by Medeek on May 22, 2019, 09:16:55 am »

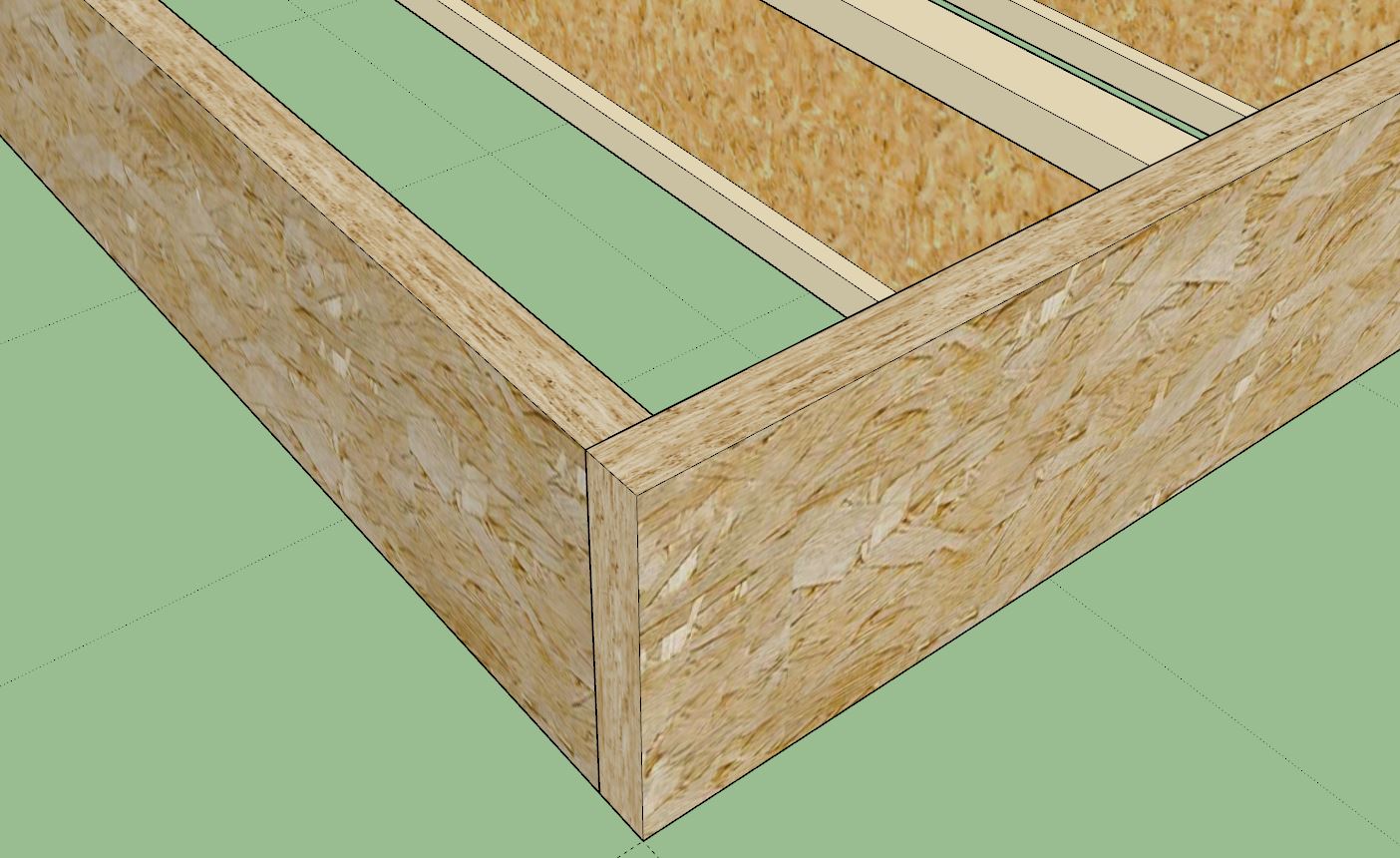

SketchUp Essentials latest video:
